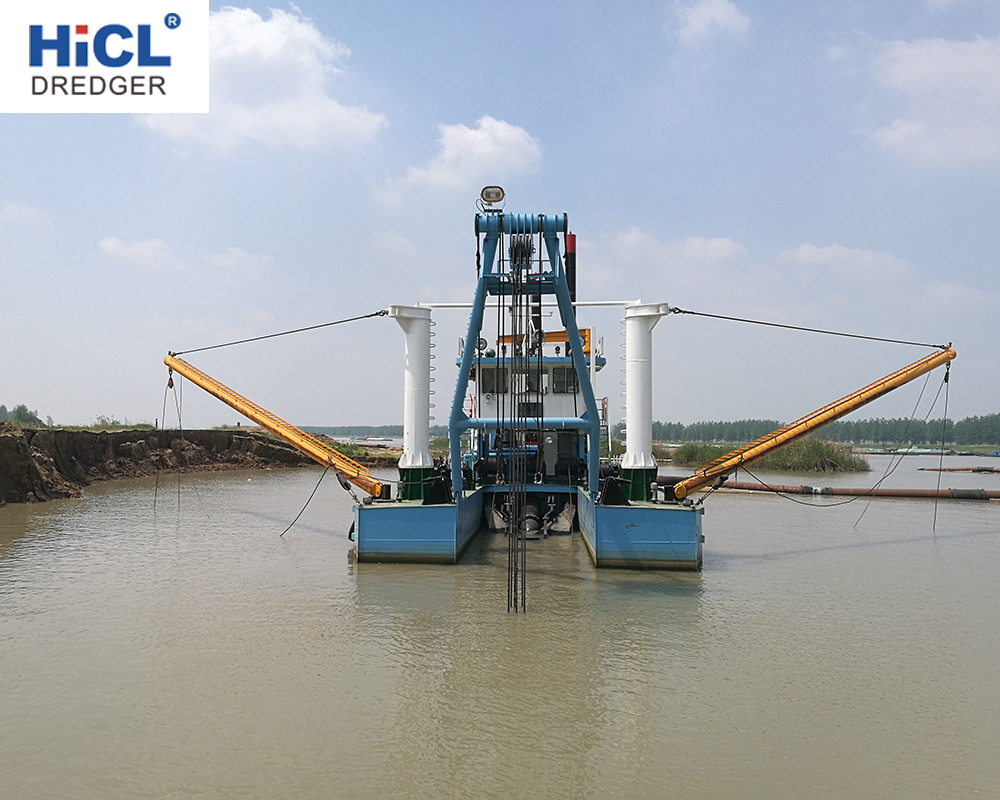

HCS500 20inch 3500m3/h Hydraulic Cutter Suction Dredger
General Description:
HCS series dredger are self-propelled or non self-propelled, portable cutter suction dredger. Its hull can be dismantled and re-assembled easily with box structure, which is equipped with horizontal shifting devices, cutter ladder lifting devices, spud devices & carrier, anchor arm, deck crane and so on. It is widely used in sand-excavating, river dredging, desilting, reclamation for channels, land and port construction, etc.
|
Desc. |
Spec. |
|
Water flow |
3500m3/h |
|
Max. dredging depth 45。 |
14m |
|
Discharge distance |
1500m |
|
LOA |
35m |
|
Hull size(LxWxH) |
26x7.8x2.4m |
|
Main pontoon(LxWxH) |
16x3.4x2.4m |
|
Side pontoon(LxWxH) |
25x2.2x2.4m |
|
Structure |
Can be dismantled and re-assembled at work site |
|
Average draught |
1.5m |
|
Suction pipe dia. |
550mm/22inch |
|
Discharge pipe dia. |
500mm/20inch |
|
Main engine brand/power |
Cummins/821kw |
|
Rotate speed |
1800rpm |
|
Auxiliary engine brand/power |
Cummins 298kw |
|
Rotate speed |
1800rpm |
|
Hydraulic winch |
100kn |
|
Hydraulic cutter power |
170kw |
|
Cutter head dia. |
1700mm |
|
Spud cylinder dia. |
160mm |
|
Spud dia. & length |
Φ560mmx20m |
|
Emergency genset power |
Cummins 24GF |
|
Self-propeller |
Optional |
|
Spud carrier |
Optional |
|
Spud folder |
Optional |
|
Anchor Arm |
Optional |
|
HICL intelligent system |
Optional |
|
Underwater pump |
Optional |
